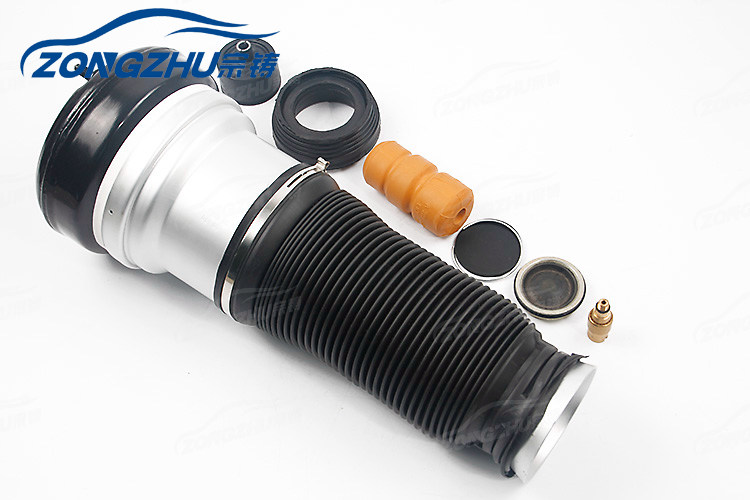

Our Mercedes-Benz W220 S-Class 2000-2006 Remanufactured Air Spring
Bag Strut will replace the original Front Air Spring Bag Strut.
What is an air spring bag strut?- Sometimes it is called an Air
Spring, Air Shock, Air Bag or Bellows. A conventional strut uses a
steel coil spring but an air strut employs an air spring bag or
bellow. This makes the ride more comfortable and gives the driver
more control of ride height. The most common reason for an air
strut failure is due to dry rotting of the air spring bag.
This is something that happens over time, the rubber starts to
deteriorate and causes leaks, when this happens the air bag can no
longer hold air pressure. A leaking air bag can cause the strut it
fits over to fail as well. The second factor of an air strut
failure is the strut itself. The strut is pressurized with fluid,
and if the strut begins to fail it will no longer have the same
pressure to hold the vehicle. If this system begins to fail one
visible sign will be that your vehicle will be lower than factory
height. If Air Struts are not replaced on time it will cause Air
Suspension Compressor Failure. Our Air Spring Bag Struts come with
a 12 months warranty against any manufacturer defects.
This Listing is For 1 Mercedes-Benz S-Class W220 Front OEM Rebuild
Suspension Air Spring Bag Strut.
Things to know about air spring:
1.Air Spring Installation
1).Before you start installing air springs, make sure you have all
the necessary tools and equipment
to perform the repair safely. 2). Familiarize yourself with the suspension on which you are
performing the repair by reviewing the
manufacturers service guide. 3). If you are in doubt about something, ask for assistance from a
qualified suspension specialist, the
suspension manufacturer or the air spring manufacturer; This can
save you a lot of time and
aggravation later in the job
2.Important tips to remember when installing a new unit
1).Check levelling valve, linkage and transmission parts for wear
and damage and if necessary replace
the damaged parts. 2).Check that the shock absorber for leakages and take a shock
absorber test. A defective shock
absorber must be replaced. Once the air lines are disconnected, check their entire length for
cracks or other damage. Replace
worn parts. With the air spring removed, other parts of the air suspension
become more accessible. Check for
wear or damage of the frame hangers, trailing arm bushings, torque
rods, the trailing arms and the
air spring mounts. When it is necessary, also replace parts. 3).Check bearing for air spring bellow for external damage,
deformation, sharp edges and correct
fastening. 4).Before installing the new unit, clean the air spring mounting
plates to ensure proper attachment to
the suspension. 5).Always use new attaching bolts for the installation and observe
the tightening torques. Never use
old bolts, because these can fall out. 6).Check the linkage of the levelling valve to see that it is
functioning properly. Under load, the linkage
should move from the neutral position up to the intake position.
This lets air into the springs,
which brings the arm back to the neutral position.That opens the
exhaust valve, allowing air to
escape until the arm returns to the neutral position. Then check
the driving level.
